ASME B16.5 Full Thread Stud Bolts
Imperial-dimensioned stud bolts tailored for ASME B16.5 inch flanges, ensuring secure connections in North American and global piping networks.
ASME B16.5 Full Thread Stud Bolts are the standard fastening solution for pipe flanges manufactured to the ASME B16.5 inch (NPS) specifications, widely used in the United States and many international oil and gas projects. These stud bolts are calculated to specific lengths based on the flange nominal pipe size (NPS) and pressure class, ensuring that when installed with heavy hex nuts, they provide the correct clamp load to compress the gasket effectively. The "full thread" or extended thread design accommodates the varying thickness of raised face flanges and ring-type joint (RTJ) flanges. Available in materials ranging from carbon steel (ASTM A193 B7) to stainless steel (B8M), these imperial studs are the backbone of process piping infrastructure, guaranteeing safety and reliability in systems transporting steam, hydrocarbons, and chemicals at extreme pressures and temperatures.

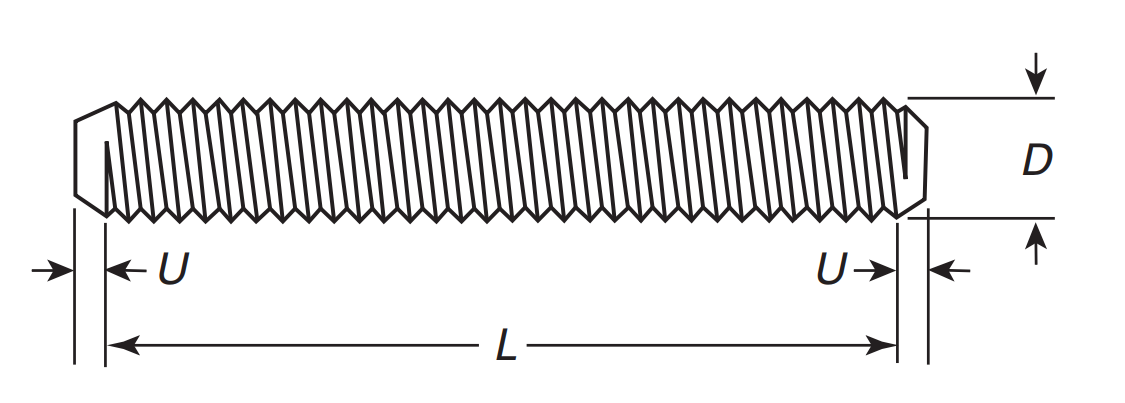

ASME B16.5 Dimensions for Flange Bolting Studs (mm)
| Nominal Size | Diameter, D | Chamfered Thread Distance, U | |||||
|---|---|---|---|---|---|---|---|
| UNC Threads | UNF Threads | 8UN Threads | |||||
| Min. | Max. | Min. | Max. | Min. | Max. | ||
| 1/4 | 6.350 | 1.270 | 2.540 | 0.914 | 1.803 | … | … |
| 5/16 | 7.938 | 1.422 | 2.819 | 1.067 | 2.108 | … | … |
| 3/8 | 9.525 | 1.600 | 3.175 | 1.067 | 2.108 | … | … |
| 7/16 | 11.113 | 1.829 | 3.632 | 1.270 | 2.540 | … | … |
| 1/2 | 12.700 | 1.956 | 3.912 | 1.270 | 2.540 | … | … |
| 9/16 | 14.288 | 2.134 | 4.242 | 1.422 | 2.819 | … | … |
| 5/8 | 15.875 | 2.311 | 4.623 | 1.422 | 2.819 | … | … |
| 3/4 | 19.050 | 2.540 | 5.080 | 1.600 | 3.175 | … | … |
| 7/8 | 22.225 | 2.819 | 5.639 | 1.829 | 3.632 | … | … |
| 1 | 25.400 | 3.175 | 6.350 | 2.134 | 4.242 | … | … |
| 1 1/8 | 28.575 | 3.632 | 7.264 | 2.134 | 4.242 | 3.175 | 6.350 |
| 1 1/4 | 31.750 | 3.632 | 7.264 | 2.134 | 4.242 | 3.175 | 6.350 |
| 1 3/8 | 34.925 | 4.242 | 8.458 | 2.134 | 4.242 | 3.175 | 6.350 |
| 1 1/2 | 38.100 | 4.242 | 8.458 | 2.134 | 4.242 | 3.175 | 6.350 |
| 1 5/8 | 41.275 | … | … | … | … | 3.175 | 6.350 |
| 1 3/4 | 44.450 | 5.080 | 10.160 | … | … | 3.175 | 6.350 |
| 1 7/8 | 47.625 | … | … | … | … | 3.175 | 6.350 |
| 2 | 50.800 | 5.639 | 11.278 | … | … | 3.175 | 6.350 |
| 2 1/4 | 57.150 | 5.639 | 11.278 | … | … | 3.175 | 6.350 |
| 2 1/2 | 63.500 | 6.350 | 12.700 | … | … | 3.175 | 6.350 |
| 2 3/4 | 69.850 | 6.350 | 12.700 | … | … | 3.175 | 6.350 |
| 3 | 76.200 | 6.350 | 12.700 | … | … | 3.175 | 6.350 |
| 3 1/4 | 82.550 | 6.350 | 12.700 | … | … | 3.175 | 6.350 |
| 3 1/2 | 88.900 | 6.350 | 12.700 | … | … | 3.175 | 6.350 |
| 3 3/4 | 95.250 | 6.350 | 12.700 | … | … | 3.175 | 6.350 |
| 4 | 101.600 | 6.350 | 12.700 | … | … | 3.175 | 6.350 |
ASME B16.5 Flange Bolting Stud Length Tolerances (mm)
| Range, L | Tolerances |
|---|---|
| From 19.05 through 304.8 | ±1.575 |
| Over 304.8 through 457.2 | ±3.175 |
| Over 457.2 | ±6.350 |
